Hfpv-1 Solar PV Piling Rig

Product DescriptionHFPV-1 solar drill rig, using new type of hydraulic technology, convenient for hole transfer. The drilling machine structure is compact, while the mast has adjustable compensation function, when drilling, the mast supported on the ground, borehole stability is good. The machine hydraulic pressure can be a

Featured Products

Product Description
Hfpv-1 Solar Photovoltaic Pile Drilling Rig for Solar PV System


HFPV-1 solar drill rig, using new type of hydraulic technology, convenient for hole transfer. The drilling machine structure is compact, while the mast has adjustable compensation function, when drilling, the mast supported on the ground, borehole stability is good. The machine hydraulic pressure can be adjusted according to different soil textures, so as to achieve the appropriate impact power for pile driving, it is a new type of pile driver.

Application
The drilling rig is mainly used in pile driving for photovoltaic solar power station, pile driving for Highway guardrail, highway guardrail construction engineering construction, etc.

Techincal Data


Hfpv-1 Solar Photovoltaic Pile Drilling Rig for Solar PV System
Impact frequency(bpm)   500--950
Impact(j)750
Work pressure(bar)130---180
Once promotion(mm)5000
Skid pitch(°)120
Boom swing angle(°)left and right total 50
Swinging angle of skid(°)left and right total 40
Host power(KW)84
Climb ability(°)35
Weight(Kg)5800
Walk speed(km/h)0--2.5
Dimension(L*W*H)(mm)6500*1970*2680

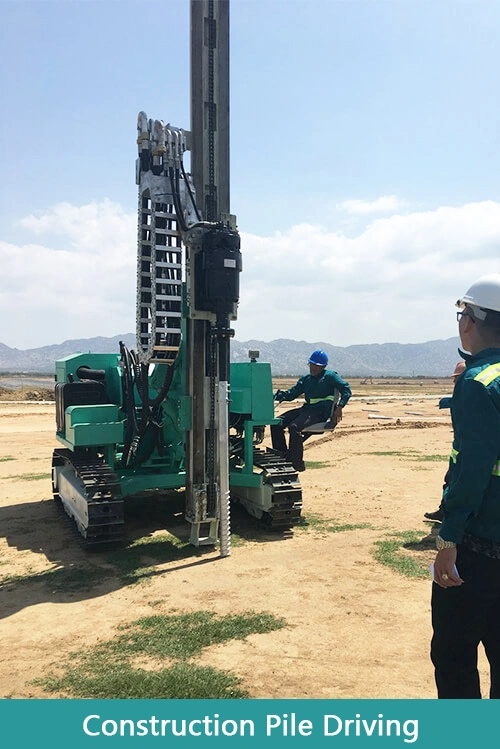

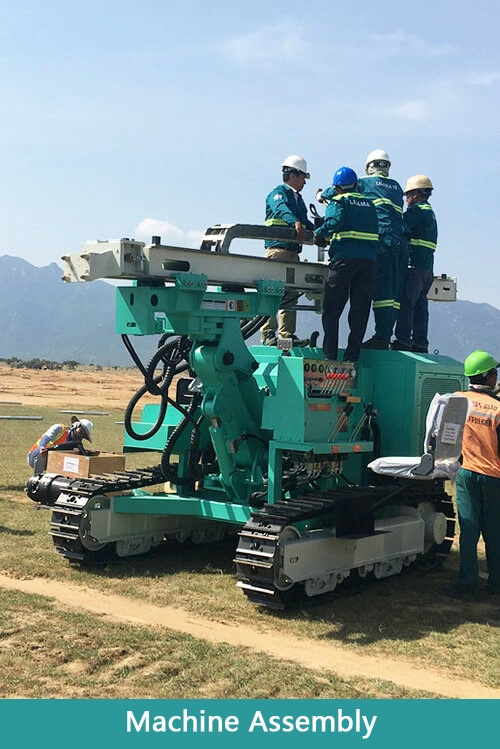

Working Site
Hfpv-1 Solar Photovoltaic Pile Drilling Rig for Solar PV System
Hfpv-1 Solar Photovoltaic Pile Drilling Rig for Solar PV System

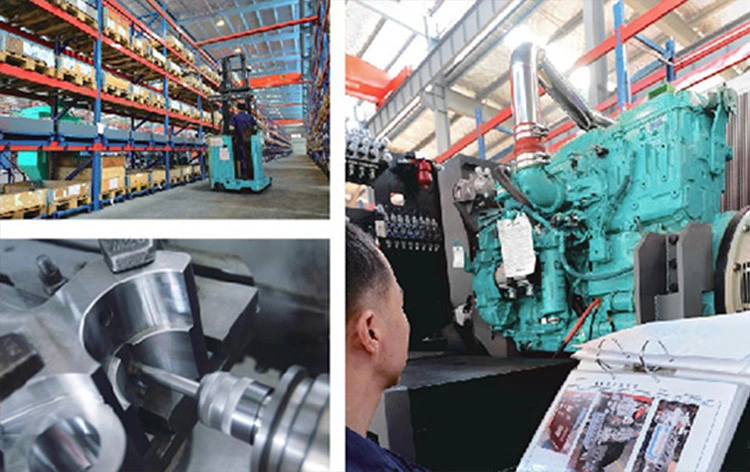

Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
Hfpv-1 Solar Photovoltaic Pile Drilling Rig for Solar PV System
Hfpv-1 Solar Photovoltaic Pile Drilling Rig for Solar PV System
1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.


Hfpv-1 Solar Photovoltaic Pile Drilling Rig for Solar PV System
Hfpv-1 Solar Photovoltaic Pile Drilling Rig for Solar PV System
FAQ
1. Are you trading company or manufacturer
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.

5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
